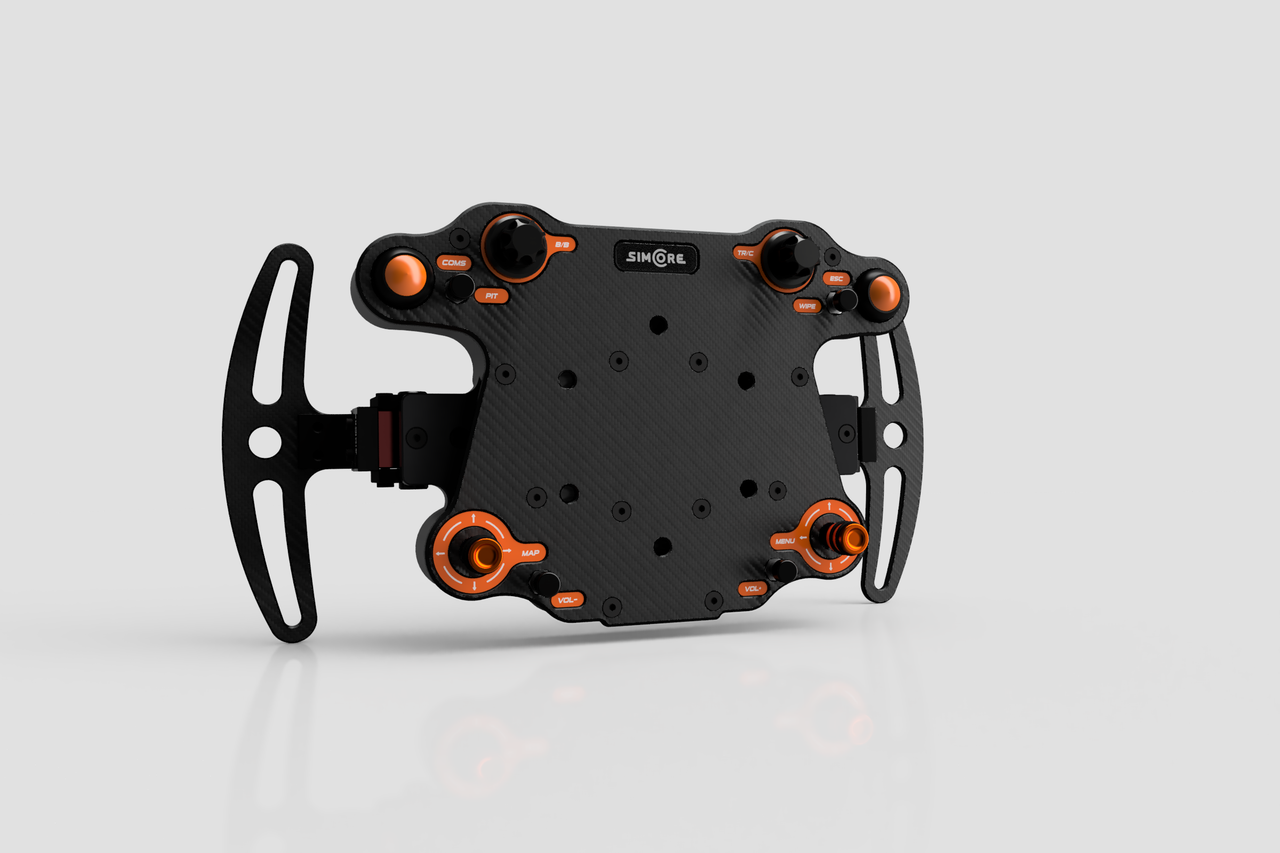

STD-WD Guide

Getting Started: 1.0

Requirements: 1.1

This device can be configured and controlled from the Simcore Control Center application available here: Simcore Control Center

Features 2.0

Funkys: 3.1

The left funky switch will always be mapped to

Up - North
Right - East
Down - South
Left - West

The right funky switch can be mapped in two different ways shown below

Default:

Up - North East
Right - South East
Down - South West
Left - North West

Alternate:

Up - Button 33
Right - Button 34
Down - Button 35
Left - Button 36

To Change funky mapping modes press and hold both funkys center buttons for at least 5 seconds. Alternatively this can be done in the SimCore Control Center app in the device settings tab.

Software Setup: 3.0

To use all the features of this device you'll need to download the SimCore Control Center application from the link here
The application is available in either a standalone format or as an installer depending on which you prefer. There is no difference in functionality between the two.

Update Firmware: 4.0

This manual is updated to match the latest firmware version so your device may need to be updated to match any recent changes.
To update firmware go to the link here: Update Tool and follow the steps on the page

see below for more detailed instructions specific to your device:

Unplug your SimCore wheel and any unneccessary usb devices from your computer.
Using a chromium based browser (use microsoft edge if no other browser installed) go to the link here: https://www.simcoreworkshop.com/firmware-updater/index.html
Select your device and the latest firmware version from the drop down menus (you can click on the changelog to view what's new)
To enter bootloader mode on your wheel press and hold the left clutch while inserting the usb cable (you may receive a notification with a link to the SimCore website. This can be ignored)
Once the wheel is in bootloader mode press connect and select SimCore Bootloader from the list.
Press send to device to start the firmware update
Do not unplug the device until the firmware update is complete
Once the progress bar reaches the end and the site says firmware update complete you can unplug and reinsert your device to exit bootloader mode
The firmware update is now complete and you can verify your firmware version using either the Simcore Control Center software or the downloadable SimCore Device Tester

Troubleshooting: 5.0

Before trying any troubleshooting steps you should first make sure your firmware is up to date and that you are running the correct version.
If you are having issues with your encoders not working correctly a reset may be required. To reset the device open the SimCore Control Center app and go to the device settings tab. In the device settings tab select Reset Device then continue.
If you notice missing inputs on your right funky it may be in the alternate mode. To change this press and hold both funkys center buttons for at least 5 seconds.
If you think there may be either a firmware or software issue please send a bug report using this link so we can fix the issue as soon as possible.
